Product Details:
Minimum Order Quantity 1 Piece
Marking Speed Capacity 5000 mm/s
Color Output Black & White
Machine Type UV Laser
Mode Of Operation Automatic
Power <2kva
Print Speed 700 Character per minute
Marking Area 150x150mm (Customized as per request)
Marking Depth Approximate UP to 250 MICRON
Laser Type UV
Usage/Application Flexible Packaging, HDPE, LDPE, PP, Metal, etc.
Offering Laser Hdpe Pipes, Lldpe Drip Lateral, Cables
Automation Grade Automatic
Voltage Single Phase 230V AC stabilized & spike free supply Online UPS 1 KVA is must.
Print Resolution 150mm X 150mm
Laser Source JPT
Laser Wavelength 355 nm
Warranty 2 Years Warranty
Marking Speed 12000 mm/s
Laser Power 3W, 5W & 10W
Maintenance No maintenance Required
Cooling System Water Cooled
Wavelength 355nm
Ambient Temperature 18 Degreec to 30 Degreec (i.e., Use AC)

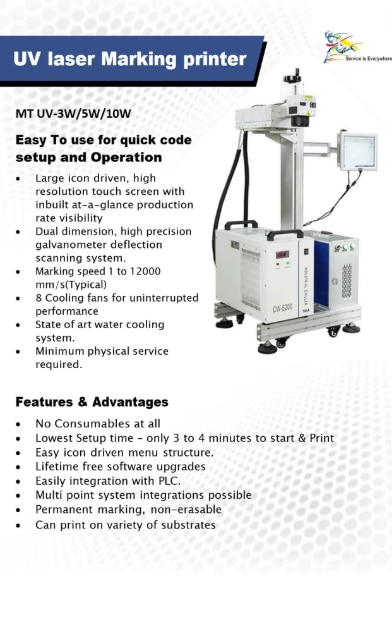

UV-3W/5W/10W Easy To use for quick code setup and Operation • Large icon driven, high resolution touch screen with inbuilt at-a-glance production rate visibility • Dual dimension, high precision galvanometer deflection scanning system. • Marking speed 1 to 12000 mm/s(Typical) • 8 Cooling fans for uninterrupted performance • State of art water cooling system. • Minimum physical service required. Features & Advantages • No Consumables at all • Lowest Setup time – only 3 to 4 minutes to start & Print • Easy icon driven menu structure. • Lifetime free software upgrades • Easily integration with PLC. • Multi point system integrations possible • Permanent marking, non-erasable • Can print on variety of substrates
